 设备 >> 氢气回收设备 >> 氢气回收系统自动、Automatic hydrogen recovery system


产品编号:
122219185616
产品名称:
氢气回收系统自动、Automatic hydrogen recovery system
规  格:
5-3000M3/h
产品备注:
根据用户的实际需要,进行科学合理的设计、生产,管道布局漂亮美观、According to the actual needs of users, scientif
产品类别:
设备

产品说明


点击新窗口打开大图

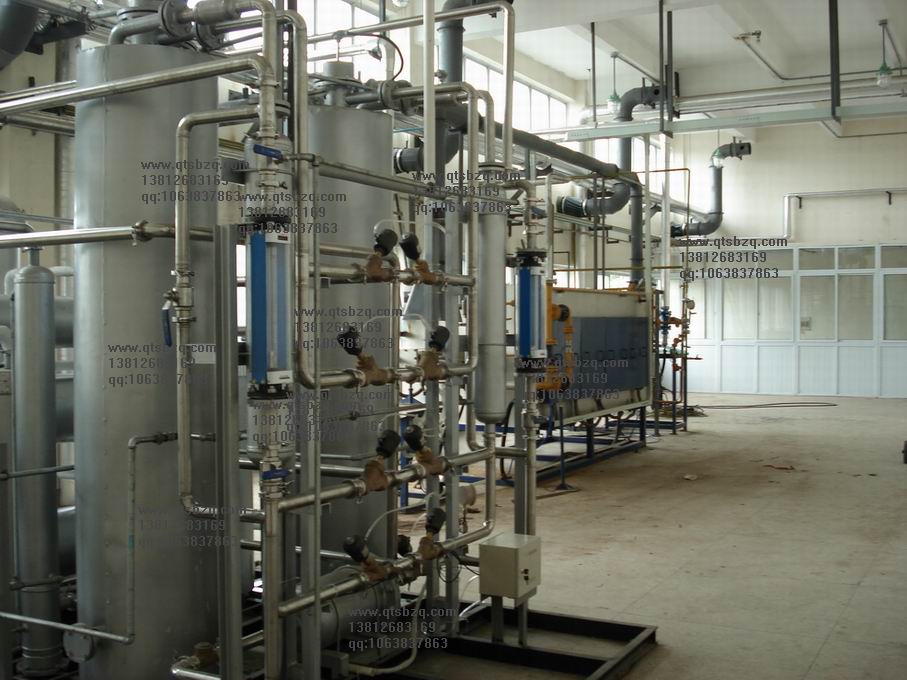

自动化氢气回收系统
 二次还原炉排出含有固体杂质和气体杂质的氢气,经过过滤器除大部分固体杂质,进入淋洗塔用水除去气体杂质,由罗茨风机升压。进入冷却系统进行热量交换,氢气的露点由出炉时43~47℃下降到15℃,氢气在淋洗过程和两级冷却过程中除去90%左右的水份。水份由汽水分离器分离出来,由自动排水器排出。氢气中剩余的水份进入1组干燥塔,经硅胶和分子筛吸附后,达到需要的露点。最后将净化后的氢气送入一次还原炉或其它用氢设备。
当干燥塔内的分子筛吸附的水份达到饱和,需要脱水再生才能重新使用。用两只吸附干燥器并联,一只工作,同时另一只可以进行再生处理。相互交替工作和再生,以保证连续运行。
取一部分净化后的氢气。去再生2组干燥塔。再生废气经冷却器冷却,水份由汽水分离器分离出来。回到1组干燥塔用进行循环利用。

二、设备特点
1.为了避免整个回收系统的压力波动,本系统增添了自动化补氢压力控制系统,随着用气量的变化,它可以根据生产工艺的变化自动控制氢气压力,使系统压力仍保持着原来的状态。
2.淋洗塔依通常的形式对氢气清洗,在它的底部设置了排污口以便清理内部的沉积物。
3.罗茨风机采用防爆变频电机系统工况改变时,罗茨风机电机工况也随之改变。保持压力稳定.


Automation hydrogen recovery system
 Secondary reduction furnace exhaust gas and solid impurities containing hydrogen impurities, passes through the filter in addition to most of the solid impurities, leaching into the water tower to remove gaseous impurities from the Roots blower boost. Into the cooling system, heat exchange, fell from the dew point of the hydrogen released when 43 ~ 47 ℃ to 15 ℃, hydrogen was removed about 90% of water in the leaching process and the two-stage cooling process. Water separated by the steam separator out discharged from the automatic drainage. Hydrogen remaining moisture from entering the group of the drying tower, silica gel and molecular sieve adsorption to reach the dew point of need. Finally, the purified hydrogen gas is fed to a hydrogen reduction furnace or other equipment.
When the water dried molecular sieve adsorption tower reaches saturation, the need to re-use regeneration dehydration. Using two parallel adsorption dryer, a work, while the other can be regenerated. Alternating work and regeneration to ensure continuous operation.
A portion of the purified hydrogen after. 2 groups to regenerate the drying tower. Regeneration gas is cooled by the cooler, the water separated by the steam separator. Back to the group with the drying tower for recycling.

Second, the device characteristics
1. To avoid pressure fluctuations throughout the recycling system, the system adds up the hydrogen pressure control automation system, with changes in gas consumption, which can be automatically controlled according to changes in the pressure of hydrogen production process, the system pressure is still maintained its original state.
2. By column leaching common form of hydrogen gas cleaning, at the bottom of it is set up to clean the sewage outfall internal deposits.
3. When the blower motor explosion frequency by changing system conditions, blower motor condition has changed. The pressure is stabilized
